HEADSHOK--HISTORY & FEATURES
The Headshok suspension fork was first introduced in 1992. It features 4 strips of needle bearings. Each strip contains 22 bearings for a total of 88. Each of the needle bearing strips are “sandwiched” between an inner race of variable thickness and an outer race. Together, with an aluminum outer tube and a steel or aluminum inner steerer tube, they form a telescoping assembly. With this design Cannondale has a system that rolls and does not slide like other suspension forks. This also keeps stiction to a minimum. This assembly is pressed into the crown of a set of rigid aluminum fork blades. We use this “rigid” design to have a flex-free system that you can “point-and-go”. The Headshok fork will not twist and bend around while under load like most conventional forks. Unlike most forks, the Headshok cartridges can be upgraded, sometimes resulting in more travel.
The following is a list of what was released for that year, some forks were carried into the next year.
***UPGRADE NOTE*** Cannondale TECH note about fork lenght:

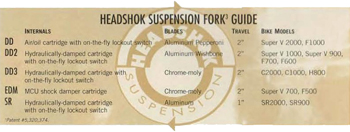

HEADSHOK--1992-1995
50mm of travel
Cartridges are non-serviceable
Upgrade to Spring Kit, DD60, or Fatty 50
Max. travel of 50mm
HDTL148/
1994
1995
1996
MC50--Elastomer/Mechanical Damper
50mm of travel
Upgrade to Spring Kit, DD60, Fatty 50
Max. travel of 50mm
HDTL148/
DD50--Elastomer/Oil Damper
50mm of travel
On/Off--Lockout
Upgrade to Spring Kit, DD60, Fatty 50
Max. travel of 50mm
HDTL146/
Fatty 50--Air/Oil Damper
50mm of travel
5-position Damping Dial
Tune “feel” by changing shim stacks, oil viscosity, and air pressure
Max. travel of 50mm
HDTL146/
Silk Road--Elastomer/Coil Damper
15mm of travel
Adjustable Preload Dial
Upgrade to DD15
Max. travel 25mm with modified DD15
HDTL148/
DD25--Elastomer/Oil Damper
25mm of travel
On/Off--Lockout
Upgrade to Coil Spring
Max. travel of 25mm
HDTL145/
1997
MC60--Coil/Mechanical Damper
60mm of travel
Upgrade to DD60, Fatty 70
Max. travel of 60mm
HDTL148/
DD60--Coil/Oil Damper
60mm of travel
On/Off--Lockout
Upgrade to Fatty 70
Max. travel of 60mm
HDTL146/
Fatty 70--Air/Oil Damper
70mm of travel
5-position Damping Dial
Tunable--Change shim stacks, oil viscosity, air pressure
Max. travel of 70mm
HDTL146/
DD15--Coil/Oil Damper
15mm of travel
On/Off--Lockout
Upgrade to 25mm of travel without top out elastomer
Max. travel of 25mm
HDTL145/
DD25--Coil/Oil Damper
25mm of travel
On/Off--Lockout
Max. travel of 25mm.
HDTL145/
1998
P-Bone M--Coil/Mechanical Damper
60mm of travel
Upgrade to DD60, Fatty 70
Max. travel of 60mm
HDTL147/
P-Bone D--Coil/Oil Damper
60mm of travel
On/Off--Lockout
Upgrade to Fatty 70
Max. travel of 60mm
HDTL146/

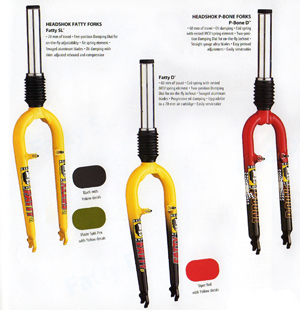

Fatty D--Coil/Oil Damper
60mm of travel
On/Off--Lockout
Upgrade to Fatty 70 for 70mm of travel
Max. travel of 70mm
HDTL146/
Fatty SL--Air/Oil Damper
70mm of travel
5-position Damping Dial
Tunable--Change shim stacks, oil viscosity, air pressure
Max. travel of 70mm
HDTL146/
Silk Path D--Coil/Oil Damper
25mm of travel
On/Off--Lockout
Max. travel of 25mm
HDTL145/
Silk Path M--Coil/Mechanical Damper
25mm of travel
Upgrade to DD25
Max. travel of 25mm
HDTL147/
DD15--Coil/Oil Damper
15mm of travel
On/Off--Lockout
Upgrade to 25mm of travel without elastomer
HDTL145/
1999
Super Fatty M--Coil/Air-Control Damper
80mm of travel
Disc-brake compatible
Upgrade to FT80 or DL80
Max. travel of 80mm
HDTL146/
Super Fatty D--Air/Oil Damper
80mm of travel
Disc-brake compatible
On/Off--Lockout
Upgrade to the FT80
Max. travel of 80mm
HDTL146/
Super Fatty SL--Air/Oil Damper
80mm of travel
Disc-brake compatible
5-position Damping Dial
Tunable--Change shim stacks, oil viscosity, air pressure
Max. travel of 80mm
HDTL146/
Fatty D--Coil/Oil Damper
60mm of travel
On/Off--Lockout
Upgrade to Fatty 70 cartridge for 70mm of travel
Disc-brake compatible
Max. travel of 70mm
HDTL147/
Fatty SL--Air/Oil Damper
70mm of travel
5-position Damping Dial
Tunable--Change shim stacks, oil viscosity, air pressure
Disc-brake compatible
Max. travel of 70mm
HDTL147/
Moto 120/DH--Air/Oil Damper
120mm of travel
5-position Damping Dial
Tunable--Change shim stack, oil viscosity, air pressure
Must use Coda Moto 120 hub with 20mm through-axle
Sachs disc brake compatible--adapter to standard mount available
HDTL146/ & HDTL147/
Moto FR--Freeride--Coil/Oil Damper
100mm of travel
5-position Damping Dial
Tunable--Change shim stack, oil viscosity
Disc-brake compatible
HDTL146/ & HDTL147/
2000
Super Fatty DL—Air/Oil Damper
80mm of travel
On-Off—Lockout
Upgrade to FT80 cartridge
HDTL146/
Super Fatty M—Coil/Mechanical Damper
80mm of travel
Upgrade to DL80 or FT80 cartridge
HDTL147/

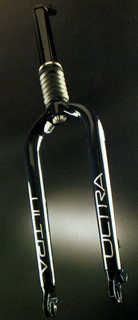

Fatty Ultra DL—Air/Oil Damper
70mm of travel
On/Off—Lockout
Upgrade to FT70
HDTL146/
Fatty M—Coil/Mechanical Damper
70mm of travel
Upgrade to DL70 or FT70
HDTL147/

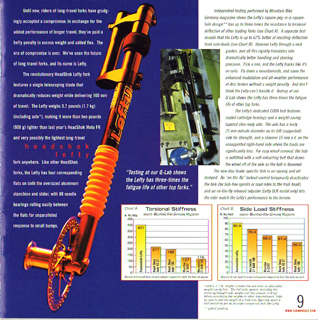

Lefty 0SS100 DLR—Air/Oil Damper
100mm of travel
On/Off Lockout & Rebound Adjustment
HDTL200/
Lefty 2.0 M—Coil/Mechanical Damper
100mm of travel
Upgrade to DLR or ELO
2001
Super Fatty DL—Air/Oil Damper
80mm of travel
On-Off—Lockout
Upgrade to FT80 cartridge
HDTL146/
Super Fatty M—Coil/Mechanical Damper
80mm of travel
Upgrade to DL80 or FT80 cartridge
HDTL147/
Fatty Ultra DL—Air/Oil Damper
70mm of travel
On/Off—Lockout
Upgrade to FT70
HDTL146/
Fatty M—Coil/Mechanical Damper
70mm of travel
Upgrade to DL70 or FT70
HDTL147/
Lefty 2.0 DLR—Air/Oil Damper
100mm of travel
On/Off Lockout & Rebound Adjustment
Upgrade to ELO
HDTL200/

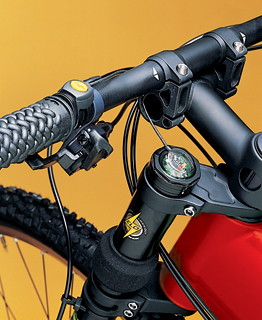

Lefty 2.0 ELO—Air/Oil Damper
Electronic Lock Out
100mm of travel
Upgrade to DLR
KT004/

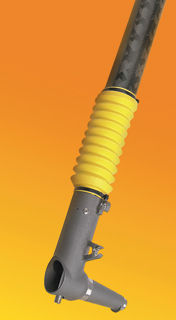

Carbon Lefty—Air/Oil Damper
ELO damper
85mm of travel stock
Travel clip and Bulkhead Installed
Cross-Country RACE fork
KT004/
2002
P-Bone M—Coil/Mechanical Damper
60mm of travel
Upgrade to DD60
HDTL146/
P-Bone D—Coil/Oil Damper
60mm of travel
On-Off—Lockout
HDTL146/
Super Fatty DL—Air/Oil Damper
80mm of travel
On-Off—Lockout
Upgrade to FT80 cartridge
HDTL146/
Super Fatty M—Coil/Mechanical Damper
80mm of travel
Upgrade to DL80 or FT80 cartridge
HDTL147/
Fatty Ultra DL—Air/Oil Damper
70mm of travel
Upgrade to FT70
On/Off—Lockout
HDTL146/
Fatty M—Coil/Mechanical Damper
70mm of travel
Upgrade to DL70 or FT70
HDTL147/
Lefty 2.0 DLR—Air/Oil Damper
100mm of travel
On/Off Lockout Knob & Rebound Adjustment
Convert to ELO
KT004/
Lefty 2.0 ELO—Air/Oil Damper
Electronic Lock Out
100mm of travel
Convert to DLR
KT004/
Lefty 2.0 Carbon ELO—Air/Oil Damper
100mm of travel stock
Carbon Inner Tube or Aluminum Inner Tube
Cross-Country RACE fork
KT004/
2003
Super Fatty Ultra DL—Air/Oil Damper
80mm of travel
Aluminum Inner Tube
On/Off Lockout
Convert to FT80
HDTL146/
Lefty Jake—Coil/Oil Damper
100mm of travel
Manitou Fluid Flow Compression Damper
External Rebound Adjustment
Internal Preload Adjustment
Steel Coil Spring
Lefty MAX—Coil/Oil Damper
130mm of travel
Manitou TPC+ Compression Damper
External Rebound Adjustment w/ “Clicker”
External Compression Adjustment
Internal Preload Adjustment
Titanium Coil Spring
Lefty 2.0 Carbon ELO---Air/Oil Damper
100mm of travel
Electronic Lock Out
Aluminum Inner Tube
Cross-Country RACE fork
Convert to 2.0 DLR
KT004/
2004
Super Fatty Ultra DL—Air/Oil Damper
80mm of travel
Aluminum Inner Tube
On/Off Lockout
Convert to FT80
HDTL146/
Lefty Jake R—Coil/Oil Damper
100mm of travel
Manitou Fluid Flow Compression Damper
External Rebound Adjustment
Internal Preload Adjustment
Steel Coil Spring
Upgrade to “Clicker” Rebound Knob
Lefty Jake TPC+ ---Coil/Oil Damper
100mm of travel
Manitou TPC+ Compression Damper
External Compression Adjustment
External Rebound Adjustment with “Clicker”
Internal Preload Adjustment
Steel Coil Spring

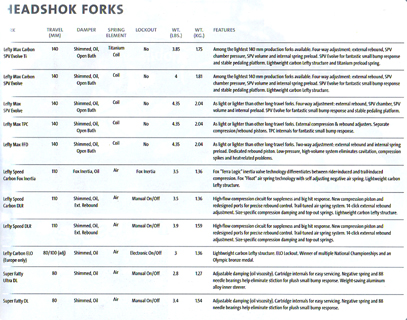

2005
Lefty Carbon MAX SPV+ Ti
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Titanium Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty Carbon MAX SPV+
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX SPV+
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX TPC
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
Manitou TPC Compression Damper
140mm of Travel
Twin Piston Chamber
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX FFD
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou FFD Compression Damper
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust

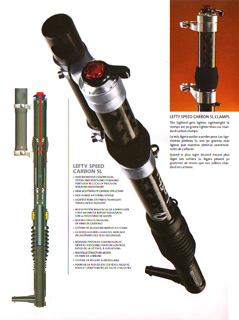

Lefty Speed Carbon Fox IV
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Fox Inertia Valve Compression Damper
Integrated "Air-On-Top" Air Spring
Rebound Adjustment

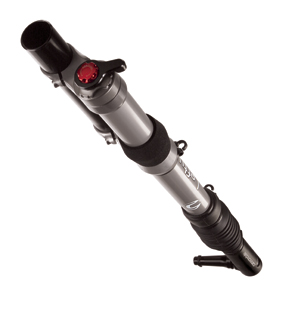

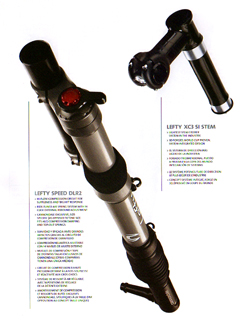

Lefty Speed Carbon DLR2
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Lefty Speed DLR2
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Super Fatty Ultra DL
Alloy Inner Tube
80mm of Travel
DL80 Cartridge
Manual Lock Out
Air Spring
Super Fatty DL
Steel Inner Tube
80mm of Travel
DL80 Cartridge
Manual Lock Out
Air Spring

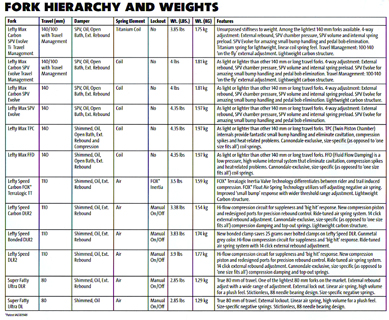

2006
Lefty Carbon MAX SPV+
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX SPV+
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX TPC
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
Manitou TPC Compression Damper
140mm of Travel
Twin Piston Chamber
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX FFD
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou FFD Compression Damper
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty Speed Carbon Fox IV-TT
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Fox Inertia Valve Trail Tuned Compression Damper
Integrated "Air-On-Top" Air Spring
Rebound Adjustment
Lefty Speed Carbon DLR2
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Lefty Speed DLR2
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Super Fatty Ultra DL80
Honed Alloy Inner Tube
80mm of Travel
DL80 Cartridge
Manual Lock Out
Air Spring
Super Fatty Ultra DLR80
Honed Alloy Inner Tube
80mm of Travel
DLR80 Cartridge
Manual Lock Out
Rebound Adjust
Air Spring
Size Specific Negative Spring

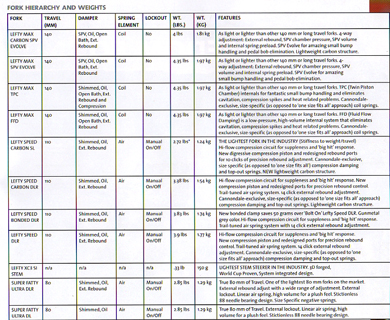

2007
Lefty Carbon MAX SPV+
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX SPV+
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou SPV Compression Damper
Stable Platform Valve
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX TPC
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
Manitou TPC Compression Damper
140mm of Travel
Twin Piston Chamber
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty MAX FFD
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
140mm of Travel
Manitou FFD Compression Damper
Steel Spring w/ Quick Preload Adjust
Manitou Rebound Damper w/ Rebound Adjust
Lefty Speed Carbon DLR SL
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated “Air-On-Bottom” Air Spring
Lefty Speed Carbon DLR2
Carbon Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Lefty Speed DLR2
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Lefty Speed DLR2 Bonded Alloy
Alloy Outer Tube w/ Alloy Inner Tube & Spindle
110mm of Travel
Cartridge Style Oil Damper
Manual Lock Out
Indexed Rebound Adjustment
Integrated "Air-On-Bottom" Air Spring
Super Fatty Ultra DL80
Honed Alloy Inner Tube
80mm of Travel
DL80 Cartridge
Manual Lock Out
Air Spring
Super Fatty Ultra DLR80
Honed Alloy Inner Tube
80mm of Travel
DLR80 Cartridge
Manual Lock Out
Rebound Adjust
Air Spring
Size Specific Negative Spring
